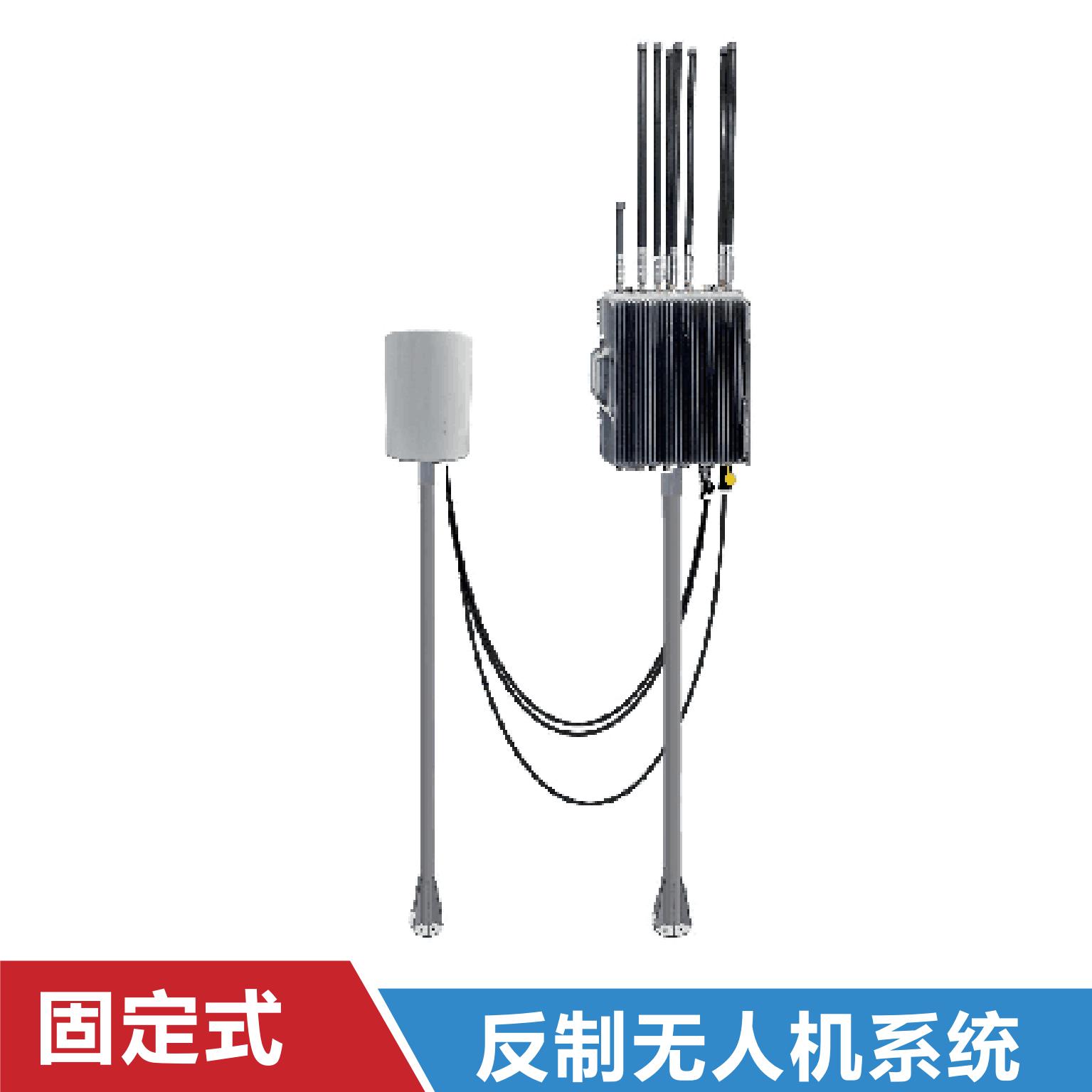

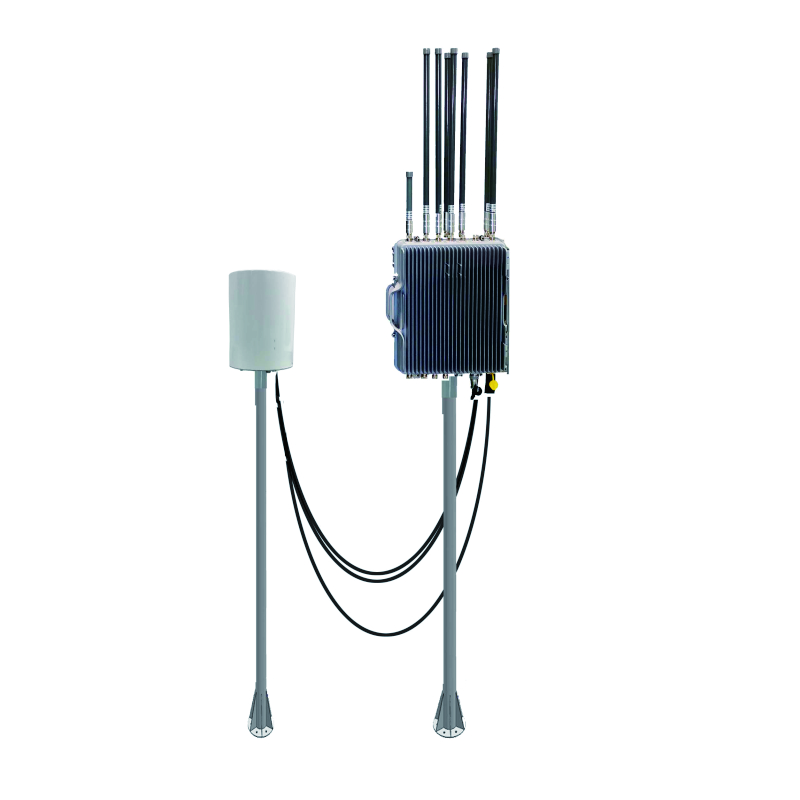

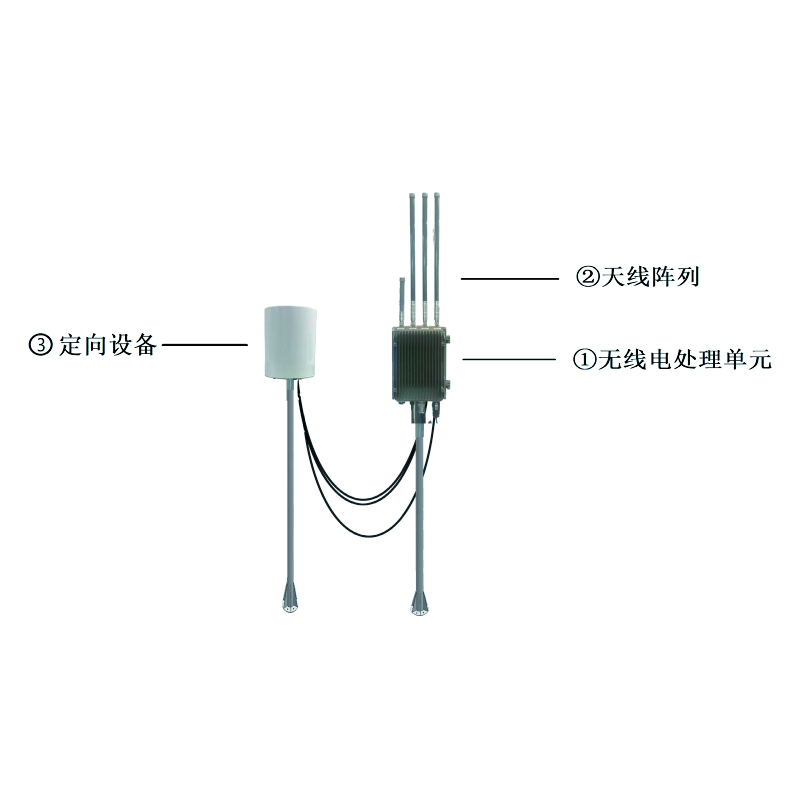

An unmanned aerial vehicle system for surveillance and attack

Product introduction

Passive detection: only passively receiving and not emitting any electromagnetic signals, can detect the UAV model and its electronic fingerprints;

Accurate identification: it can accurately identify different UAVs of the same brand and model;

Unattended: After starting the automatic defense, it enters the unattended mode, which can effectively prevent the invasion of unmanned aerial vehicles.

Strike defense: broadband high-power jamming;

Full model library: support all series of DJI, mainstream brands in the market and DIY drones covering more than 98% of the market UAV models.

Integrability: Professional UAV detection software can be integrated into radar, optoelectronic and interference control systems.

Protection class: IP66.

Product parameters

Frequency support: 2.4g, 5.8g, 1.5g (can be customized 433M, 900M, etc.)

Detection range: ≥2km

Direction finding accuracy: ≤10 degrees (follow); ≤ 3 degrees (hover)

Strike range: ≥1km (flat without covering open areas)

Reconnaissance sensitivity: better than -95dBm (25kHz)

Reconnaissance airspace: 360° full airspace

Real-time detection number: ≥30

Size: 410mm×190mm×335mm (length × width × height)

Weight: 12KG+3KG (equipment + direction finding antenna)
